Warmdex Insulation…
Warm Roof Decking Board
WARMDEX®OSB and WARMDEX®FR are the answer to your warm roof build up. Consisting of Insulated Decking Board Manufactured of Kingspan Kooltherm technology with either 22mm OSB4 boarding or 18mm FSC Certified WBP Fire Rated exterior grade plywood.
These are ideally suited for use within your warm roof build up for standing seam roofing including – Rheinzink, VMZinc, KME & Aurubis Copper, Uginox Stainless Steel and Prefa and Falzonal Aluminium plus other manufacturers.
Features & Benefits
• Various thicknesses to meet the U-Value for your specific project
• Solutions for Various Construction Methods
• Can be installed with Ply, Metal or Concrete Support Deck (May need Primer Applied)
• Approved Specialists Contractors throughout the UK and Ireland
• Technical Back-up and Advice Service
• Wind Load Calculations on request
• Durability
Standards and Approvals
Manufactured to the highest standards under a management system certified to:
• IS EN ISO 9001: 2008 (Quality Management Systems; Requirements),
• IS EN ISO 14001: 2004 (Environmental Management Systems, Requirements)
• IS OHSAS 18001: 2007 (Health & Safety Management Systems, Requirements)
Application and Warranty
Manufacturer product warranty of 10 years can be offered if installed with the following products*;
• WARMFAST®VB
• WARMFAST®BM
• WARMDEX®FIX

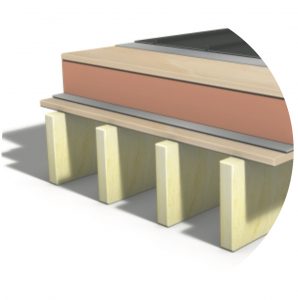

The Material make up
• The top Layer is 22mm OSB4.
• The core is manufactured with Kingspan’s high performance CFC/HCFC-free, zero ODP Resol foam technology and has a typical density of 35kg/m3 rigid Resol insulation core. Manufactured to BS EN ISO 13166.
• The Bottom Layer is a low emissivity composite foil which is highly resistant to the transmission of water vapour.
Sizes and Thickness
• All boards are 2.4m x 1.2m
.
Thickness
82mm (60+22mm)
102mm (80+22mm)
112mm (90+22mm)
122mm (100+22mm)
142mm (120+22mm)
152mm (130+22mm)
162mm (140+22mm)
172mm (150+22mm)
The Material make up
• The top Layer is 18mm FSC Certified WBP Fire Rated exterior grade plywood.
• The core is manufactured with Kingspan’s high performance CFC/HCFC-free, zero ODP Resol foam technology and has a typical density of 35kg/m3 rigid Resol insulation core. Manufactured to BS EN ISO 13166.
• The Bottom Layer is a low emissivity composite foil which is highly resistant to the transmission of water vapour.
Sizes and Thickness
• All boards are 2.4m x 1.2m
Thickness
88mm (60+18mm)
98mm (80+18mm)
108mm (90+18mm)
118mm (100+18mm)
138mm (120+18mm)
148mm (130+18mm)
158mm (140+18mm)
168mm (150+18mm)
“A Positive Partnership – Through excellent work ethics and unparalleled service ALM have become leaders in our field.”
Contact
All products can be delivered by ALM direct using our own fleet of vehicles which consist of crane offload facility and small vehicles for site restrictive access, all of which are available upon request. Our transport Service has been assessed and awarded FORS Accreditation by Transport For London
Contact our friendly sales and technical team on 01992 801927 or send us an e-mail. If you would like to contact us via the website out of hours please click here.
